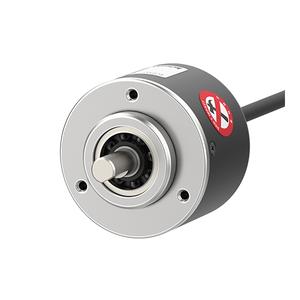

Autonics E50S8-50-3-T-24 Rotary Encoder
The Autonics E50S8-50-3-T-24 Rotary Encoder features a Ø8mm shaft diameter, 50P/R resolution, and Totem pole output offering reliable rotational detection in automation systems. Manufactured by Autonics, it supports a maximum allowable revolution of 5000rpm and operates on a 12–24VDC power supply (±5% ripple P-P: max. 5%). Available under Autonics Rotary Encoders and part of the E50S Series, this model includes an axial cable connection type and IP50 protection structure meeting IEC standards.
| Brand | Autonics |
| Product Type | Rotary Encoder |
| Model Number | E50S8-50-3-T-24 |
Autonics E50S8-50-3-T-24 Rotary Encoder – Technical Specifications
| Specification | Value |
|---|---|
| Shaft outer diameter | Ø8mm |
| Max. response frequency | 300kHz |
| Max. allowable revolution | 5000rpm |
| Starting torque | Max. 70gf.cm(max. 0.00686N.m) |
| Resolution | 50P/R |
| Output phase | A, B, Z |
| Control output | Totem pole |
| Power supply | 12-24VDC |
| Connection type | Axial cable type |
| Protection structure | IP50 (IEC standard) |
| Environment_Ambient temperature | -10 to 70℃, storage: -25 to 85℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 90% RH |
| Accessories | Ø8mm coupling, Bracket |
| Weight | Approx. 363g(approx. 275g) |
Call us for 50 mm Incremental Rotary Encoders E50S8-50-3-T-24 at the best rates. Technical Attributes of E50S8-50-3-T-24 are shaft outer diameter of Ø8mm for precise applications. The encoder supports a maximum response frequency of 300kHz and an allowable revolution speed of 5000rpm, ensuring efficient performance in demanding environments. With a resolution of 50P/R, it provides accurate signal output. The control output is a Totem pole, designed to operate seamlessly with a power supply 12-24VDC. The encoder comes with an Axial cable type connection for easy integration into various systems. Its operational temperature range is -10 to 70℃, storage: -25 to 85℃. Humidity levels are supported at 35 to 85% RH, storage: 35 to 90% RH during storage. Unlock Exclusive Pricing with a Quote for your requirement of 50 mm Incremental Rotary Encoders. Trust in our ability to provide more advantageous pricing and dedicated support beyond other other Dealers.
