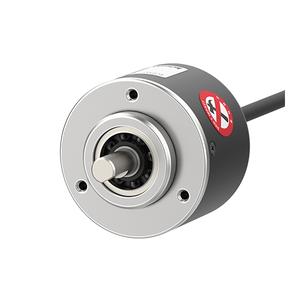

E50S8-1000-3-T-1: Rotary Encoder Autonics

The technical specifications of Rotary Encoder Autonics E50S8-1000-3-T-1:

  • Shaft outer diameter: Ø8mm
  • Resolution: 1000 Pulses per Revolution (P/R)
  • Output phases: A, B, Z
  • Control output: Totem pole
  • Power supply: 5 to 24VDC
  • Connection type: Cable
  • Max. response frequency: 300kHz
  • Max. allowable revolution: 5000 rpm

Original price was: ₹12,750.00.Current price is: ₹11,475.00.

Out of stock

Rotary Encoder Autonics E50S8-1000-3-T-1 Technical Specification:



 Type of Encoder Shaft type of incremental rotary encoder
 Shaft outer diameter  Ø8mm
 Resolution  1000P/R
 Output phase  A, B, Z
 Control output  Totem pole
Totem pole output ● [Low] – Load current: Max. 30mA, Residual voltage: MAax. 0.4VDCᜡ
● [High] – Load current
: Max. 10mA, Output voltage (power voltage 5VDCᜡ): Min. (power voltage-2.0)VDCᜡ, Output voltage (power voltage 12-24VDCᜡ): Min. (power voltage-3.0)VDCᜡ
Response time (rise/fall) Totem pole output Max. 1㎲ (cable length: 2m, I sink=20mA)
Current consumption Max. 80mA (disconnection of the load), Line driver output: Max. 50mA (disconnection of the load)
Insulation resistance Over. 100MΩ (at 500VDC megger between all terminals and case)
Dielectric strength 750VAC 50/60Hz for 1 minute (between all terminals and case)
 Power supply  5 to 24VDC
 Connection type  Cable type
 Protection structure  IP50
Environment_Ambient temperature -10 to 70℃, storage: -25 to 85℃
Environment_Ambient humidity 35 to 85% RH, storage: 35 to 90% RH
Vibration 1.5mm amplitude at a frequency of 10 to 55Hz in each X, Y, and Z direction for 2 hours
Shock Approx. Max. 75G
 Max. response frequency  300kHz
 Max. allowable revolution  5000rpm
 Starting torque  Max. 70gf.cm(max. 0.00686N.m)
 Weight  Approx. 275g

Are you looking for the Rotary Encoder Autonics E50S8-1000-3-T-1? This encoder has an 8mm shaft diameter, resolution of 1000P/R, A, B, and Z output phases, and totem pole control output. Operating on a 5 to 24VDC power supply, it has a cable-type connection and is IP50 protected, It has various applications with a maximum response frequency of 300kHz and a maximum allowable revolution of 5000rpm. For detailed specifications, refer to the E50S8-1000-3-T-1 datasheet and E50S8-1000-3-T-1 manual. IndMALL Automation offers the best prices for the Autonics Rotary Encoder E50S8-1000-3-T-1. Explore other models like E50S8-2000-3-T-1 as well.
