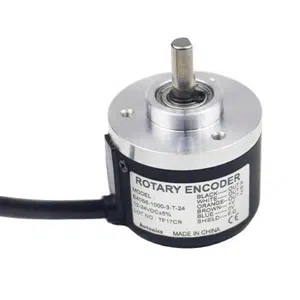

Autonics E40S6-360-3-T-24: 360 PPR Encoder

The technical specifications for the Autonics 360 PPR Encoder E40S6-360-3-T-24:

  • Shaft outer diameter: Ø6mm
  • Resolution: 360P/R
  • Output phase: A, B, Z
  • Control output: Totem pole
  • Power supply: 12 to 24VDC
  • Connection type: Cable type
  • Max. response frequency: 300kHz
  • Max. allowable revolution: 5000rp

Original price was: ₹9,350.00.Current price is: ₹8,415.00.

Out of stock

Autonics 360 PPR Encoder E40S6-360-3-T-24 Technical Specification:



 Type of Encoder Diameter ø40mm shaft/hollow shaft/hollow built-in type of incremental rotary encoder
 Shaft outer diameter  Ø6mm
 Resolution  360P/R
 Output phase  A, B, Z
 Control output  Totem pole
Totem pole output • Low – Load current: Max. 30mA, Residual voltage: Max. 0.4VDC
• High – Load current: Max. 10mA, Output voltage(Power voltage 5VDC): Min. (Power voltage-2.0)VDC,
Output voltage(Power voltage 12-24VDC): Min. (Power voltage-3.0)VDC
Response time (rise/fall) Totem pole output Max. 1㎲ (cable length: 2m, I sink=20mA)
Current consumption Max. 80mA(disconnection of the load), Line driver output: Max. 50mA(disconnection of the load)
Insulation resistance Min. 100MΩ(at 500VDC megger between all terminals and case)
Dielectric strength 750VAC 50/60Hz for 1 minute(Between all terminals and case)
 Power supply 12-24VDC ±5%(ripple P-P: max. 5%)
 Connection type  Cable type
Environment_Ambient temperature -10 to 70℃, storage: -25 to 85℃
Environment_Ambient humidity 35 to 85% RH, storage: 35 to 90% RH
Vibration 1.5mm amplitude or 300m/s2 at frequency of 10 to 55Hz(for 1 min.) in each of X, Y, Z directions for 2 hours
Shock Approx. Max. 50G
 Protection structure  IP50
 Max. response frequency  300kHz
 Max. allowable revolution  5000rpm
 Starting torque  Max. 40gf.cm(max. 0.00392N.m)
Accessories Ø6mm coupling standard, Ø8mm coupling(sold separately)
 Weight  Approx. 120g

Are you in search of the Autonics E40S6-360-3-T-24. This encoder has a 6mm shaft diameter and a resolution of 360 PPR Encoder, maximum response frequency of 300kHz and can handle up to 5000rpm, with a starting torque of max. 40gf.cm. It features A, B, and Z output phases and a totem pole control output, operating on a 12-24VDC power supply. The encoder comes with a radial cable connection and is IP50 protected. IndMALL Automation ensures the best prices for this Autonics Rotary Encoder.
