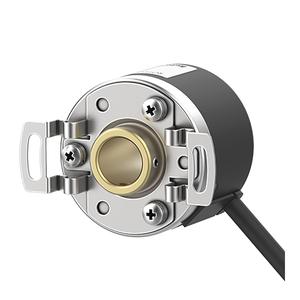

Autonics E40HB8-3600-3-N-24 Rotary Encoder
The Autonics E40HB8-3600-3-N-24 Rotary Encoder offers Γ8mm shaft inner diameter, 5000rpm Max. allowable revolution, NPN open collector, Control output 12-24VDC, Power supply, 3600P/R, resolution Radial cable type connection type. Manufactured by Autonics under the Autonics Rotary Encoder category, this model belongs to the Autonics E40HB Series.
| Brand | Autonics |
| Product Type | Rotary Encoder |
| Model Number | E40HB8-3600-3-N-24 |
Autonics E40HB8-3600-3-N-24 Rotary Encoder β Technical Specifications
| Specification | Value |
|---|---|
| Shaft inner diameter | Γ8mm |
| Max. response frequency | 300kHz |
| Max. allowable revolution | 5000rpm |
| Starting torque | Max. 50gf.cm(max. 0.0049N.m) |
| Resolution | 3600P/R |
| Output phase | A, B, Z |
| Control output | NPN open collector |
| Power supply | 12-24VDC |
| Connection type | Radial cable type |
| Protection structure | IP50 |
| Environment_Ambient temperature | -10 to 70β, storage: -25 to 85β |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 90% RH |
| Accessories | Bracket |
| Weight | Approx. 120g |
Autonics E40HB8-3600-3-N-24 is designed with a shaft inner diameter of Γ8mm and delivers up to 3600 pulses per revolution (3600P/R), making it ideal for high-precision feedback applications. It supports a maximum allowable revolution of 5000rpm and a response frequency of 300kHz, ensuring accurate signal generation even at high speeds. The encoder operates on a reliable 12β24VDC power supply with Β±5% ripple tolerance and utilizes an NPN open collector output for consistent and simple integration into control systems. Its radial cable connection and low starting torque of 50gf.cm allow flexible installation with minimal drag on the rotating shaft. This model comes pre-equipped with a mounting bracket and weighs approximately 120g, making it compact and integration-friendly.
With IP50 protection, the encoder is built to function reliably in clean industrial environments where moderate dust levels may exist. It can operate across a temperature range of -10Β°C to 70Β°C and endure storage conditions from -25Β°C to 85Β°C. Humidity tolerance from 35% to 85% RH ensures the encoder maintains accuracy even in humid environments. These environmental ratings make the E40HB8-3600-3-N-24 a dependable choice for long-term deployment in Indian factory conditions and OEM assembly lines.
The Autonics E40HB8-3600-3-N-24 encoder is widely used in rotary indexing tables, servo-based pick-and-place systems, textile machinery, and high-speed labeling machines. Senior maintenance engineers prefer this model for its precise pulse output and reliable signal quality, especially in systems requiring tight synchronisation. For junior engineers and students, it offers hands-on learning opportunities with clear wiring and simple output compatibility. This model helps streamline production line diagnostics and control feedback loops, ensuring operational stability. For full documentation and engineering references, visit the Autonics official product page.
