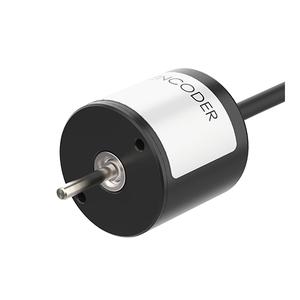

Autonics E20S2-100-6-L-5-R Rotary Encoder
The Autonics E20S2-100-6-L-5-R Rotary Encoder offers Γ2mm shaft outer diameter, 6000rpm Max. allowable revolution, Line Driver, Control output 5VDC, Power supply, 100P/R, resolution Axial cable type connection type. Manufactured by Autonics under the Autonics Rotary Encoder category, this model belongs to the Autonics E20S Series.
| Brand | Autonics |
| Product Type | Rotary Encoder |
| Model Number | E20S2-100-6-L-5-R |
Autonics E20S2-100-6-L-5-R Rotary Encoder β Technical Specifications
| Specification | Value |
|---|---|
| Shaft outer diameter | Γ2mm |
| Max. response frequency | 100kHz |
| Max. allowable revolution | 6000rpm |
| Starting torque | Max. 5gf.cm(max. 0.00049N.m) |
| Resolution | 100P/R |
| Output phase | A, @(A^), B, @(B^), Z, @(Z^) |
| Control output | Line Driver |
| Power supply | 5VDC |
| Connection type | Axial cable type |
| Protection structure | IP50 |
| Environment_Ambient temperature | -10 to 70β, storage: -20 to 80β |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 90% RH |
| Accessories | Γ2mm coupling |
| Weight | Approx. 35g |
Call us for 20 mm Incremental Rotary Encoders E20S2-100-6-L-5-R at the best rates. Technical Attributes of E20S2-100-6-L-5-R are shaft outer diameter of Γ2mm for precise applications. The encoder supports a maximum response frequency of 100kHz and an allowable revolution speed of 6000rpm, ensuring efficient performance in demanding environments. With a resolution of 100P/R, it provides accurate signal output. The control output is a Line Driver, designed to operate seamlessly with a power supply 5VDC. The encoder comes with an Axial cable type connection for easy integration into various systems. Its operational temperature range is -10 to 70β, storage: -20 to 80β. Humidity levels are supported at 35 to 85% RH, storage: 35 to 90% RH during storage. Unlock Exclusive Pricing with a Quote for your requirement of 20 mm Incremental Rotary Encoders. Trust in our ability to provide more advantageous pricing and dedicated support beyond other other Dealers.
