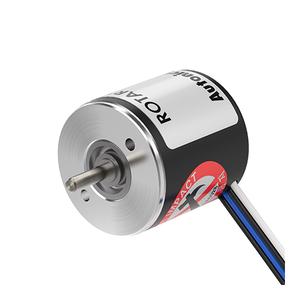

Autonics E18S2-300-1-A-5-R Rotary Encoder
The Autonics E18S2-300-1-A-5-R Rotary Encoder offers Γ2mm shaft outer diameter, 6000rpm Max. allowable revolution, No Amp., Control output 5VDC, Power supply, 300P/R, resolution Axial cable type connection type. Manufactured by Autonics under the Autonics Rotary Encoder category, this model belongs to the Autonics E18S Series.
| Brand | Autonics |
| Product Type | Rotary Encoder |
| Model Number | E18S2-300-1-A-5-R |
Autonics E18S2-300-1-A-5-R Rotary Encoder β Technical Specifications
| Specification | Value |
|---|---|
| Shaft outer diameter | Γ2mm |
| Max. response frequency | 25kHz |
| Max. allowable revolution | 6000rpm |
| Starting torque | Max. 10gf.cm(max. 0.00098N.m) |
| Resolution | 300P/R |
| Output phase | A |
| Control output | No Amp. |
| Power supply | 5VDC |
| Connection type | Axial cable type |
| Protection structure | IP50 |
| Environment_Ambient temperature | -10 to 70β, storage: -20 to 80β |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 90% RH |
| Accessories | Γ2mm coupling |
| Weight | Approx. 35.4g(approx. 12g) |
Mail Us for your needs in 18 mm Incremental Rotary Encoders E18S2-300-1-A-5-R with budget-friendly prices. The Main Technical Parameters of E18S2-300-1-A-5-R include shaft outer diameter of Γ2mm for precise applications. The encoder supports a maximum response frequency of 25kHz and an allowable revolution speed of 6000rpm, ensuring efficient performance in demanding environments. With a resolution of 300P/R, it provides accurate signal output. The control output is a No Amp., designed to operate seamlessly with a power supply 5VDC. The encoder comes with an Axial cable type connection for easy integration into various systems. Its operational temperature range is -10 to 70β, storage: -20 to 80β. Humidity levels are supported at 35 to 85% RH, storage: 35 to 90% RH during storage. Customize Your Experience with a Quote for your requirement of 18 mm Incremental Rotary Encoders. Experience the difference with our competitive pricing and superior support over other Suppliers.
