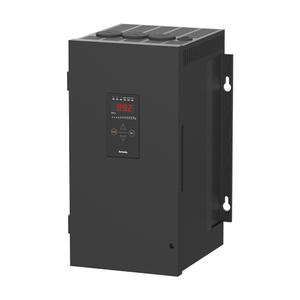

Home Autonics Power Controller DPU Series DPU34B-200N Autonics DPU34B-200N Thyristor Power Controller The Autonics DPU34B-200N Power Controller offers 3-phase , 200A current capacity, Phase control: 0 to 98%, Cycle·ON/OFF control: 0 to 100% output range, 440V power supply. Manufactured by Autonics under the Autonics Power Controller category, this model belongs to the SPRM Series .
Brand Autonics Product Type Power Controller Model Number DPU34B-200N
Autonics DPU34B-200N Thyristor Power Controller – Technical Specifications Specification Value Control input • Auto: 4-20mA / 0-20mA / 0-5VDC @(=) / 1-5VDC @(=) / 0-10VDC @(=) / voltage pulse (0/12VDC @(=)) / no-voltage input (ON/OFF) / Communication input (RS485)• Manual: inside 10kΩ VR, outside 3 to 10kΩ VR (min. 2W) Control method • Phase control: Normal control(Non-Feedback), static voltage/static current/static power control(Feedback)• Cycle control (Z.C.): Fixed cycle control, Variable cycle control• ON/OFF control (Z.C.) Output range Phase control: 0 to 98%, Cycle·ON/OFF control: 0 to 100% Power supply 440V Power consumption ≤ 60 W (control power) Environment_Ambient temperature -10 to 50 ℃, storage: -20 to 80 ℃ (no freezing or condensation) Environment_Ambient humidity 5 to 90 %RH, storage: 5 to 90 %RH (no freezing or condensation) Indicator R, S, T indicator (green)Operation / manual control indicator (green)DI, alarm / unit (V, A) indicator (red) Number of phase 3-phase Load • Phase control: resistance load, inductive load• ON/OFF, Cycle control: resistance load Rated current capacity 200A Option No option Size 80~200A Unit weight (packaged weight) ≈ 11.5 kg (≈ 13.0 kg)
