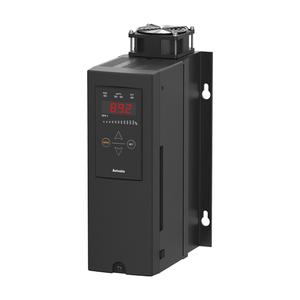

Autonics DPU12A-025D Thyristor Power Controller

The Autonics DPU12A-025D Power Controller offers Single-phase, 25A current capacity, Phase control: 0 to 98%, Cycle·ON/OFF control: 0 to 100% output range, 220V power supply. Manufactured by Autonics under the Autonics Power Controller category, this model belongs to the SPRM Series.

Autonics DPU12A-025D
Datasheet
BrandAutonics
Product TypePower Controller
Model NumberDPU12A-025D

Autonics DPU12A-025D Thyristor Power Controller – Technical Specifications

SpecificationValue
Control input• Auto: 4-20mA / 0-20mA / 0-5VDC @(=) / 1-5VDC @(=) / 0-10VDC @(=) / voltage pulse (0/12VDC @(=)) / no-voltage input (ON/OFF) / Communication input (RS485)• Manual: inside 10kΩ VR, outside 3 to 10kΩ VR (min. 2W)
Control method• Phase control: Normal control(Non-Feedback), static voltage/static current/static power control(Feedback)• Cycle control (Z.C.): Fixed cycle control, Variable cycle control• ON/OFF control (Z.C.)
Output rangePhase control: 0 to 98%, Cycle·ON/OFF control: 0 to 100%
Power supply220V
Power consumption≤ 40 W (control power)
Environment_Ambient temperature-10 to 50 ℃, storage: -20 to 80 ℃ (no freezing or condensation)
Environment_Ambient humidity5 to 90 %RH, storage: 5 to 90 %RH (no freezing or condensation)
IndicatorOperation / manual control indicator (green)DI, alarm / unit (V, A) indicator (red)
Number of phaseSingle-phase
Load• Phase control: resistance load, inductive load• ON/OFF, Cycle control: resistance load
Rated current capacity25A
OptionRemote Display Unit
Size0~70A
Unit weight (packaged weight)≈ 3.0 kg (≈ 3.2 kg)
