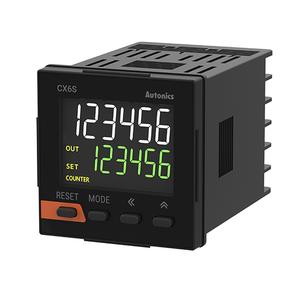

Autonics CX6S-1P4 Counter
The CX6S-1P4 Autonics Counter supports 5k cps counting speed, LCD display, and SPDT relay output for industrial applications. The CX6S-1P4 belongs to Autonics industrial automation products and the Autonics Counter category. This model is part of the CX6S Series and offers count up/down operation, 100-240VAC power supply, 1-stage preset control, and decimal scaling up to fifth digit for counting and timing operations.
| Brand | Autonics |
| Product Type | Counter |
| Model Number | CX6S-1P4 |
Autonics CX6S-1P4 Counter – Technical Specifications
| Specification | Value |
|---|---|
| Display method | Counting display part- 2-digit 7-segment LCD, 4-digit 11-segment LCDSetting value display part- 6-digit 7-segment LCD |
| Max. Counting Speed | 1, 30, 300, 1k, 5k [cps] |
| Counter_Counting range | -99999 to 999999 |
| Min. signal Width | 1ms/20ms |
| Power supply | 100-240VAC~ 50/60Hz |
| External Power Supply | Max. 12VDC @(=) ±10%, 100mA |
| Operation method | Counter: Count up, Count down, Count up/downTimer: Count up, Count down |
| Terminal | Terminal block |
| Output Operation | SIGNAL ON DELAY, POWER ON DELAY, ON-OFF DELAY |
| Time operation | POWER ON STARTSIGNAL ON START |
| Signal Input Method | Voltage input(PNP), No-voltage input(NPN) |
| Setting range | 0.001 sec to 999.999 sec, 0.01 sec to 9999.99 sec, 0.1 sec to 99999.9 sec, 1 sec to 999999 sec, 0.01 sec to 99 min 59.99 sec, 0.1 sec to 999 min 59.9 sec, 1 sec to 9999 min 59 sec, 0.1 min to 99999.9 min, 1 min to 999999 min, 1 sec to 99 hour 59 min 59 sec, 1 min to 9999 hour 59 min, 0.1 hour to 99999.9 hour |
| Control output_Type | 1-stage preset |
| Control output_Relay | SPDT (1c): 1 |
| Counter_Scale | Decimal point up to fifth digit |
| Memory Protection | Approx. 10 years |
| Environment_Ambient temperature | -10 to 55℃, storage: -25 to 65℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Protection structure | IP50(front panel) |
| Weight | Approx. 157g(approx. 112g) |
The CX6S-1P4 Autonics Counter is an industrial counting and timing device designed for automation systems requiring stable pulse monitoring and relay control. The CX6S Series model supports 5k cps maximum counting speed, -99999 to 999999 counting range, SPDT relay output, and 100-240VAC power supply. CX6S-1P4 is used in industrial automation applications where counting accuracy, timing functions, and reliable control outputs are required for machine operation and process monitoring.
CX6S-1P4 is commonly used in conveyor systems, packaging equipment, assembly machinery, and automated production lines requiring continuous counting and timing control. The Autonics Counter provides stable operation with selectable counting speeds and clear LCD monitoring during machine processes. Its terminal block structure supports panel installation in industrial environments where count up, count down, and timer functions are required. The CX6S Series helps maintain reliable signal processing and controlled machine operation in manufacturing systems.
CX6S-1P4 Autonics Counter combines counting and timer functions for industrial systems requiring dependable monitoring and output control. The model supports 1ms minimum signal width, 1-stage preset output, external 12VDC power supply, and SIGNAL ON DELAY operation for industrial applications. Autonics products are widely used across factory automation systems because of their operational stability and consistent performance. CX6S-1P4 from the CX6S Series is suitable for industrial counting, timing, and machine control applications requiring reliable long-term operation.
