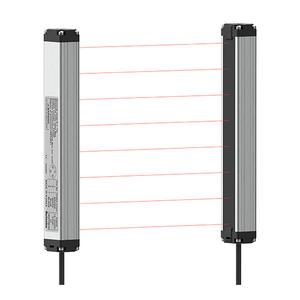

Autonics BW40-08 Area Sensor
The Autonics BW40-08 Area Sensor offers Through-beam type(direct beam) sensing, 0.1 to 7m sensing distance, Infrared LED(850nm modulated) light source, 12-24VDC power supply , NPN open collector output. Manufactured by Autonics under the Autonics Area Sensor category, this model belongs to the Autonics BW Series.
| Brand | Autonics |
| Product Type | Area Sensor |
| Model Number | BW40-08 |
Autonics BW40-08 Area Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Sensing type | Through-beam type(direct beam) |
| Sensing distance | 0.1 to 7m |
| Light source | Infrared LED(850nm modulated) |
| Optical axis pitch | 40mm |
| Number of optical axes | 8 |
| Power supply | 12-24VDC |
| Control output | NPN open collector |
| Operation mode | Light ON |
| Environment_Ambient illumination | Ambient light: Max. 10,000lx(receiver illumination) |
| Environment_Ambient temperature | -10 to 55℃, storage: -20 to 60℃ |
| Connection type | Cable connector type(Ø5, 300mm, M12) |
| Protection structure | IP65 |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Min. sensing target | Opaque material of min. Ø50mm |
| Response time | Max. 10ms |
| Material | • Case: Aluminum, • Front cover, sensing part: Acrylic |
| Cable specification | Ø5mm, 4-wire, 300mm, M12 connector |
| Sensing height/Total length | 280/320mm |
| Accessories | Bracket A: 4, Bracket B: 4, Fixing bolt: 8 |
| Weight | BW40-24: Approx. 2.1kg(approx. 1.4kg) |
The Autonics BW40-08 uses a through-beam type detection system with a sensing range of 0.1 to 7 meters and infrared LED light at 850nm. Its 40mm optical axis pitch and 8 optical axes provide accurate detection across wider zones. Operating on 12–24VDC with a tolerance of ±10%, it supports NPN open collector output and Light ON operation. The maximum response time of 10ms ensures quick reaction in high-speed applications. Built with a durable aluminum case and protected by an IP65 enclosure, the sensor withstands challenging industrial environments. It functions reliably in temperatures between -10°C to 55°C and tolerates ambient light up to 10,000 lux. A 300mm cable with M12 connector enables quick and secure integration. Designed to detect opaque objects as small as 50mm, it is a trusted choice for automated systems requiring stable and accurate area detection. For more Autonics products, visit Autonics Sensors & Controllers.
Its compact design and quick-connect wiring reduce setup time, making it suitable for both new installations and retrofits. With its proven stability, consistent detection, and robust enclosure, this sensor remains a top choice among engineers seeking reliability and long-term use. This makes the Autonics BW40-08 a dependable performer in any industrial automation project.
