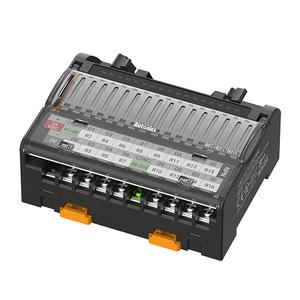

Autonics ABS-HC16TN-PN I/O Terminal Block
The Autonics ABS-HC16TN-PN I/O Terminal Blocks offers โค 24 VDC voltage, Screw terminal type, 7.62 mm Terminal pitch, Power indicator: red, operating indicator: blue indicator. Manufactured by Autonics under the Autonics I/O Terminal Blocks category, this model belongs to the Autonics ASS Series.
| Brand | Autonics |
| Product Type | I/O Terminal Blocks |
| Model Number | ABS-HC16TN-PN |
Autonics ABS-HC16TN-PN I/O Terminal Block โ Technical Specifications
| Specification | Value |
|---|---|
| Rated voltage | โค 24 VDC |
| Current consumption | โค 7.8 mA or โค 10.5 mA |
| Number of connector pins | 20 |
| Terminal type | Screw |
| Terminal pitch | 7.62 mm |
| Indicator | Power indicator: red, operating indicator: blue |
| Applicable cable_Solid wire | ร 0.3 to ร 1.2 mm |
| Applicable cable_Stranded wire | AWG 22-16 (0.30 to 1.25 mmยฒ) |
| Applied relay | NYP24W-K[TAKAMISAWA(Fujitsu)] |
| Number of relay points | 16 |
| Insulation resistance | โฅ1,000Mโฆ (at 500VDC megger) |
| Dielectric strength_Between coil-contacts | 3,000VAC 50/60Hz for 1 minute |
| Dielectric strength_Between same contacts | 750VAC 50/60Hz for 1 minute |
| Environment_Ambient temperature | -15 to 55โ, storage: -25 to 65โ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Material | CASE, BASE, COVER: PCterminal pin: brass, Ni-plating |
| Weight | โ 185 g (โ 232 g) |
Call us for Autonics Relay Terminal Blocks ABS-HC16TN-PN at the best rates. Technical Attributes of ABS-HC16TN-PN are โค 24 VDC rated voltage, ensuring stable and efficient operation. The current consumption is โค 7.8 mA or โค 10.5 mA, optimizing energy efficiency. It features a Screw type terminal with an 7.62 mm terminal pitch, providing secure and reliable connections.
With โฅ1,000Mโฆ (at 500VDC megger) insulation resistance and dielectric strength of 3,000VAC 50/60Hz for 1 minute between coil-contacts and 750VAC 50/60Hz for 1 minute between the same contacts, this relay guarantees high electrical safety. It operates within an ambient temperature range of -15 to 55โ, storage: -25 to 65โ and humidity levels of 35 to 85% RH, storage: 35 to 85% RH, ensuring durability in industrial environments.
Constructed with CASE, BASE, COVER: PCterminal pin: brass, Ni-plating brass terminal pins, it is designed for longevity. With an approximate weight of โ 185 g (โ 232 g), it offers a robust yet lightweight design. Unlock Exclusive Pricing with a Quote for your requirement of Relay Terminal Blocks. Trust in our ability to provide more advantageous pricing and dedicated support beyond other other Dealers.
