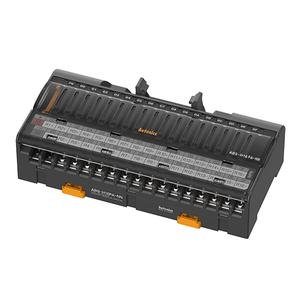

Autonics ABS-H16PA-NN I/O Terminal Block
The Autonics ABS-H16PA-NN I/O Terminal Blocks offers 24VDC ±10% voltage, 250VAC~ 3A, 30VDC 3A load voltage & current, 16-point relay points, Power indicator: Red LED, operation and disconnection indicator: Blue LED indicator. Manufactured by Autonics under the Autonics I/O Terminal Blocks category, this model belongs to the Autonics ASS Series.
| Brand | Autonics |
| Product Type | I/O Terminal Blocks |
| Model Number | ABS-H16PA-NN |
Autonics ABS-H16PA-NN I/O Terminal Block – Technical Specifications
| Specification | Value |
|---|---|
| Rated voltage | 24VDC ±10% |
| Current consumption | ≤8mA/≤13mA |
| Number of connector pins | 20-pin |
| Indicator | Power indicator: Red LED, operation and disconnection indicator: Blue LED |
| Rated load voltage & current | 250VAC~ 3A, 30VDC 3A |
| Applied relay | APAN3124 [MATSUSHITA(Panasonic)] |
| Number of relay points | 16-point |
| Applicable cable | AWG22-16(0.30 to 1.25mm²) |
| Insulation resistance | ≥1,000MΩ (at 500VDC megger) |
| Dielectric strength_Between coil-contacts | 3,000VAC 50/60Hz for 1 minute |
| Dielectric strength_Between same contacts | 1,000VAC 50/60Hz for 1 minute |
| Accessories | Jumper bar: 2(Model:JB-7.62-08) |
| Environment_Ambient temperature | -15 to 55℃, storage: -25 to 65℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Material | CASE: MPPO, BASE: Polyamide 66 (G25%), TERMINAL PIN: Brass |
| Weight | Approx. 307g(approx. 224g) |
Send Your Inquiry for Autonics Relay Terminal Blocks ABS-H16PA-NN with cost-effective solutions. Essential Technical Specs of ABS-H16PA-NN are 24VDC ±10% rated voltage, ensuring stable and efficient operation. The current consumption is ≤8mA/≤13mA, optimizing energy efficiency. It features a 250VAC~ 3A, 30VDC 3A Rated load voltage & current with an 16-point Number of relay points, providing secure and reliable connections.
With ≥1,000MΩ (at 500VDC megger) insulation resistance and dielectric strength of 3,000VAC 50/60Hz for 1 minute between coil-contacts and 1,000VAC 50/60Hz for 1 minute between the same contacts, this relay guarantees high electrical safety. It operates within an ambient temperature range of -15 to 55℃, storage: -25 to 65℃ and humidity levels of 35 to 85% RH, storage: 35 to 85% RH, ensuring durability in industrial environments.
Constructed with CASE: MPPO, BASE: Polyamide 66 (G25%), TERMINAL PIN: Brass brass terminal pins, it is designed for longevity. With an approximate weight of Approx. 307g(approx. 224g), it offers a robust yet lightweight design. Capture the Best Deal with a Quote for your requirement of Relay Terminal Blocks. Our pricing and support are designed to exceed the standards of other Traders & Suppliers.
