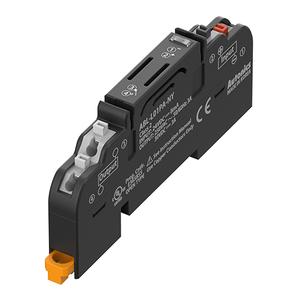

Autonics ABL-L01TN-NY I/O Terminal Block
The Autonics ABL-L01TN-NY I/O Terminal Blocks offers 24VDC ยฑ10% voltage, Screwless terminal type, 9.0mm(arranging over 2 units) Terminal pitch, Operation indicator: Blue LED indicator. Manufactured by Autonics under the Autonics I/O Terminal Blocks category, this model belongs to the Autonics ASS Series.
| Brand | Autonics |
| Product Type | I/O Terminal Blocks |
| Model Number | ABL-L01TN-NY |
Autonics ABL-L01TN-NY I/O Terminal Block โ Technical Specifications
| Specification | Value |
|---|---|
| Rated voltage | 24VDC ยฑ10% |
| Current consumption | โค 8mA |
| Terminal type | Screwless |
| Terminal pitch | 9.0mm(arranging over 2 units) |
| Indicator | Operation indicator: Blue LED |
| Applicable cable_Solid wire | ร0.6 to ร1.25mm(60โ only) |
| Applicable cable_Stranded wire | AWG22-16(0.3~1.25mmยฒ)(60โ only) |
| Rated load voltage & current | 250VAC~ 50/60Hz 3A, 30VDC 3A |
| Applied relay | NYP24W-K[TAKAMISAWA(Fujitsu)] |
| Number of relay points | 1-point |
| Insulation resistance | โฅ1,000Mโฆ (at 500VDC megger) |
| Dielectric strength_Between coil-contacts | 3,000VAC 50/60Hz for 1 minute |
| Dielectric strength_Between same contacts | 750VAC 50/60Hz for 1 minute |
| Protection structure | IP20(IEC standard) |
| Environment_Ambient temperature | -15 to 55โ, storage: -25 to 65โ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Material | Terminal block: Polyamide 66, Conducting plate: Brass, CASE&BASE: Poly phenylene sulfide |
| Weight | Approx. 135g(approx. 21g) |
Mail Us for your needs in Autonics Relay Terminal Blocks Screwless Type ABL-L01TN-NY with budget-friendly prices. The Main Technical Parameters of ABL-L01TN-NY include 24VDC ยฑ10% rated voltage, ensuring stable and efficient operation. The current consumption is โค 8mA, optimizing energy efficiency. It features a Screwless type terminal with an 9.0mm(arranging over 2 units) terminal pitch, providing secure and reliable connections.
With โฅ1,000Mโฆ (at 500VDC megger) insulation resistance and dielectric strength of 3,000VAC 50/60Hz for 1 minute between coil-contacts and 750VAC 50/60Hz for 1 minute between the same contacts, this relay guarantees high electrical safety. It operates within an ambient temperature range of -15 to 55โ, storage: -25 to 65โ and humidity levels of 35 to 85% RH, storage: 35 to 85% RH, ensuring durability in industrial environments.
Constructed with Terminal block: Polyamide 66, Conducting plate: Brass, CASE&BASE: Poly phenylene sulfide brass terminal pins, it is designed for longevity. With an approximate weight of Approx. 135g(approx. 21g), it offers a robust yet lightweight design. Customize Your Experience with a Quote for your requirement of Relay Terminal Blocks Screwless Type. Experience the difference with our competitive pricing and superior support over other Suppliers.
