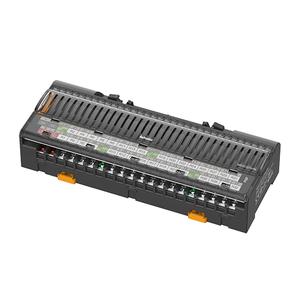

Autonics ABL-H16R6-NN I/O Terminal Block
The Autonics ABL-H16R6-NN I/O Terminal Blocks offers 24VDC Β±10% voltage, Screwless terminal type, β₯7.8mm Terminal pitch, Power indicator: Red LED, operation indicator: Blue LED indicator. Manufactured by Autonics under the Autonics I/O Terminal Blocks category, this model belongs to the Autonics ASS Series.
| Brand | Autonics |
| Product Type | I/O Terminal Blocks |
| Model Number | ABL-H16R6-NN |
Autonics ABL-H16R6-NN I/O Terminal Block β Technical Specifications
| Specification | Value |
|---|---|
| Rated voltage | 24VDC Β±10% |
| Current consumption | β€20mA |
| Terminal type | Screwless |
| Terminal pitch | β₯7.8mm |
| Indicator | Power indicator: Red LED, operation indicator: Blue LED |
| Applicable cable_Solid wire | Γ0.6 to Γ1.25mm(60β only) |
| Applicable cable_Stranded wire | AWG22-16(0.3~1.25mmΒ²)(60β only) |
| Rated load voltage & current | 250VAC~ 50/60Hz 3A, 30VDC 3A |
| Applied relay | G6B-1174P-FD-US[OMRON] |
| Number of relay points | 16-point |
| Insulation resistance | β₯1,000Mβ¦ (at 500VDC megger) |
| Dielectric strength_Between coil-contacts | 3,000VAC 50/60Hz for 1 minute |
| Dielectric strength_Between same contacts | 1,000VAC 50/60Hz for 1 minute |
| Accessories | Jumper bar: 2 |
| Protection structure | IP20(IEC standard) |
| Environment_Ambient temperature | -15 to 55β, storage: -25 to 65β |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Material | Terminal block, cover: polycarbonate / CASE&BASE: modified polyphenylene oxide |
| Weight | Approx. 446g(approx. 348g) |
IndMALL Automation Dealing offers Autonics Relay Terminal Blocks Screwless Type ABL-H16R6-NN at unbeatable prices. The Main Technical Parameters of ABL-H16R6-NN are 24VDC Β±10% rated voltage, ensuring stable and efficient operation. The current consumption is β€20mA, optimizing energy efficiency. It features a Screwless type terminal with an β₯7.8mm terminal pitch, providing secure and reliable connections.
With β₯1,000Mβ¦ (at 500VDC megger) insulation resistance and dielectric strength of 3,000VAC 50/60Hz for 1 minute between coil-contacts and 1,000VAC 50/60Hz for 1 minute between the same contacts, this relay guarantees high electrical safety. It operates within an ambient temperature range of -15 to 55β, storage: -25 to 65β and humidity levels of 35 to 85% RH, storage: 35 to 85% RH, ensuring durability in industrial environments.
Constructed with Terminal block, cover: polycarbonate / CASE&BASE: modified polyphenylene oxide brass terminal pins, it is designed for longevity. With an approximate weight of Approx. 446g(approx. 348g), it offers a robust yet lightweight design. Take the First Step with a Quote for your requirement of Relay Terminal Blocks Screwless Type. Choose us for unparalleled pricing and support over other Dealers & Distributors.
