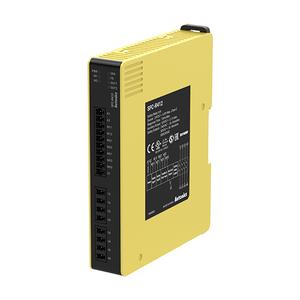

Autonics SFC-N322-23-L Safety Controller
The Autonics SFC-N322-23-L Safety Controller offers 24VDC power supply, 85 to 110% of rated voltage range, P channel FET , 2 × PNP transistor: X1, X2 (error) output , 0.1mA leakage current. Manufactured by Autonics under the Autonics Safety Controller category, this model belongs to the Autonics SFC Series.
| Brand | Autonics |
| Product Type | Safety Controller |
| Model Number | SFC-N322-23-L |
Autonics SFC-N322-23-L Safety Controller – Technical Specifications
| Specification | Value |
|---|---|
| Power supply | 24VDC |
| Allowable voltage range | 85 to 110% of rated voltage |
| Power consumption | 3.5W |
| Input | ON: ≥11 VDC ≥ 5mA, OFF: ≤ 5VDC ≤ 1mA |
| Cable | ≤ 100m (≤ 100Ω, ≤ 10nF) |
| Safety output | P channel FET |
| Instantaneous | 3 × |
| off-delay | 2 × |
| Time accuracy | ≤ ± 5% |
| Sub output | 2 × PNP transistor: X1, X2 (error) |
| Load current | Below 2-point output: ≤ DC 1A, Over 3-point output: ≤ DC 0.8A |
| Leakage current | 0.1mA |
| International standards | IEC/EN 61508 (SIL3), IEC/EN 62061 (SILCL3), IEC/EN 60947-5-1, EN ISO 13849-1 (Category 4, PLe), UL listed E249635 |
| Logical AND connections | No. of connections: max. 4 units, no. of total connections: max. 20 units, No. of layers: max. 5 layers, cable length: max. ≤ 100m |
| SFN connections | Max. 30 units |
| Weight | Approx. 100g (approx. 150g) |
Mail Us for your needs in Safety Controllers SFC-N322-23-L with budget-friendly prices. The Main Technical Parameters of SFC-N322-23-L include 24VDC power supply with an allowable voltage range of 85 to 110% of rated voltage of the rated voltage, these sensors deliver consistent functionality across applications. With a power consumption of 3.5W, they ensure energy efficiency. Equipped with a robust cable capable of reaching up to ≤ 100m (≤ 100Ω, ≤ 10nF), the sensors provide flexibility in installation. Safety output is handled via an P channel FET, with a sub-output supported by a single 2 × PNP transistor: X1, X2 (error). These sensors are designed to manage a load current of Below 2-point output: ≤ DC 1A, Over 3-point output: ≤ DC 0.8A with a leakage current of 0.1mA, ensuring precision and safety in operations. Customize Your Experience with a Quote for your requirement of Safety Controllers. Experience the difference with our competitive pricing and superior support over other Suppliers.
